Pneumatic butterfly valves are widely used in various industries due to their efficient design and ease of operation. These valves play a crucial role in controlling the flow of liquids, gases, and other media within a pipeline system. In this article, we will explore the working principle, advantages, applications, and key considerations when using pneumatic butterfly valves.

    Understanding Pneumatic Butterfly Valves

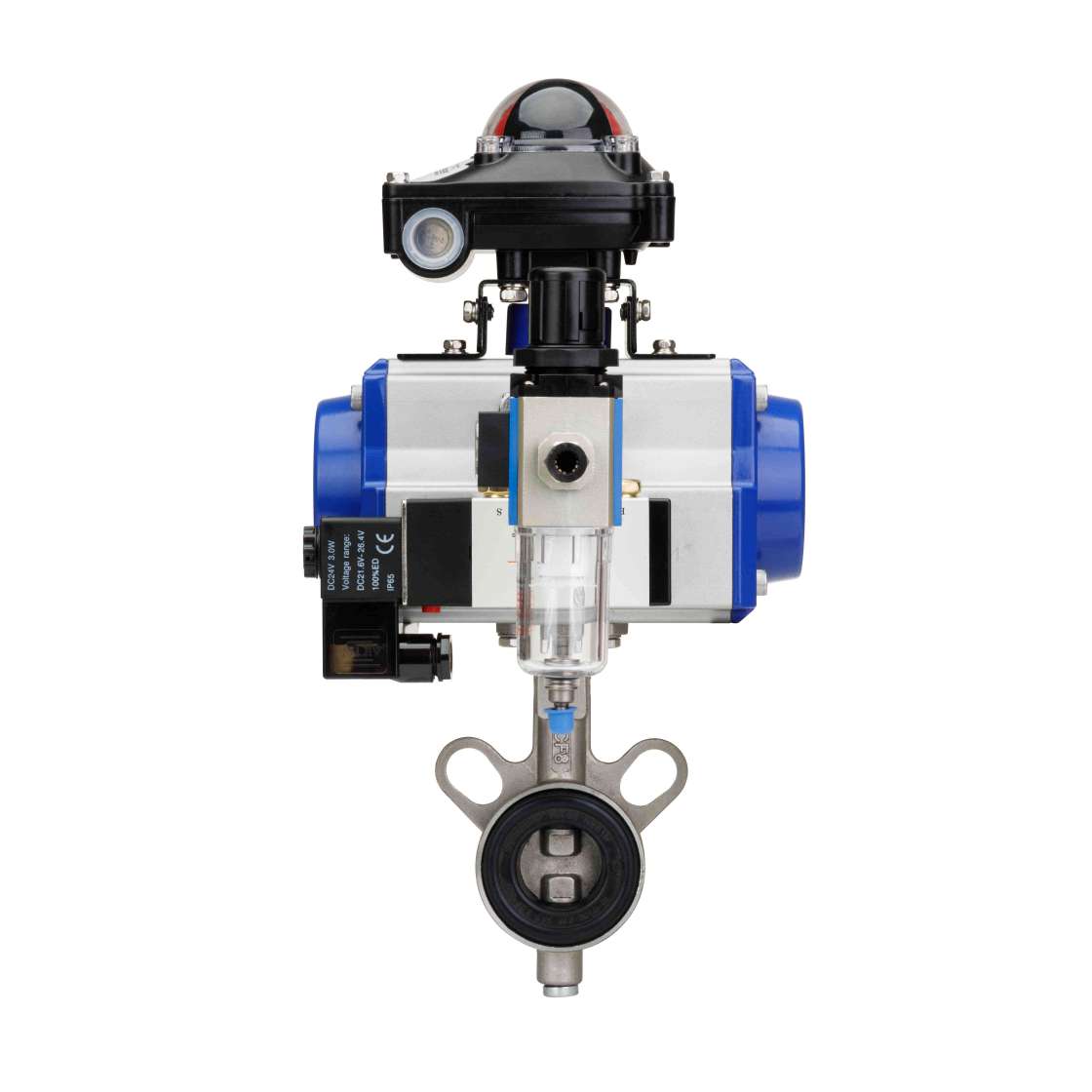

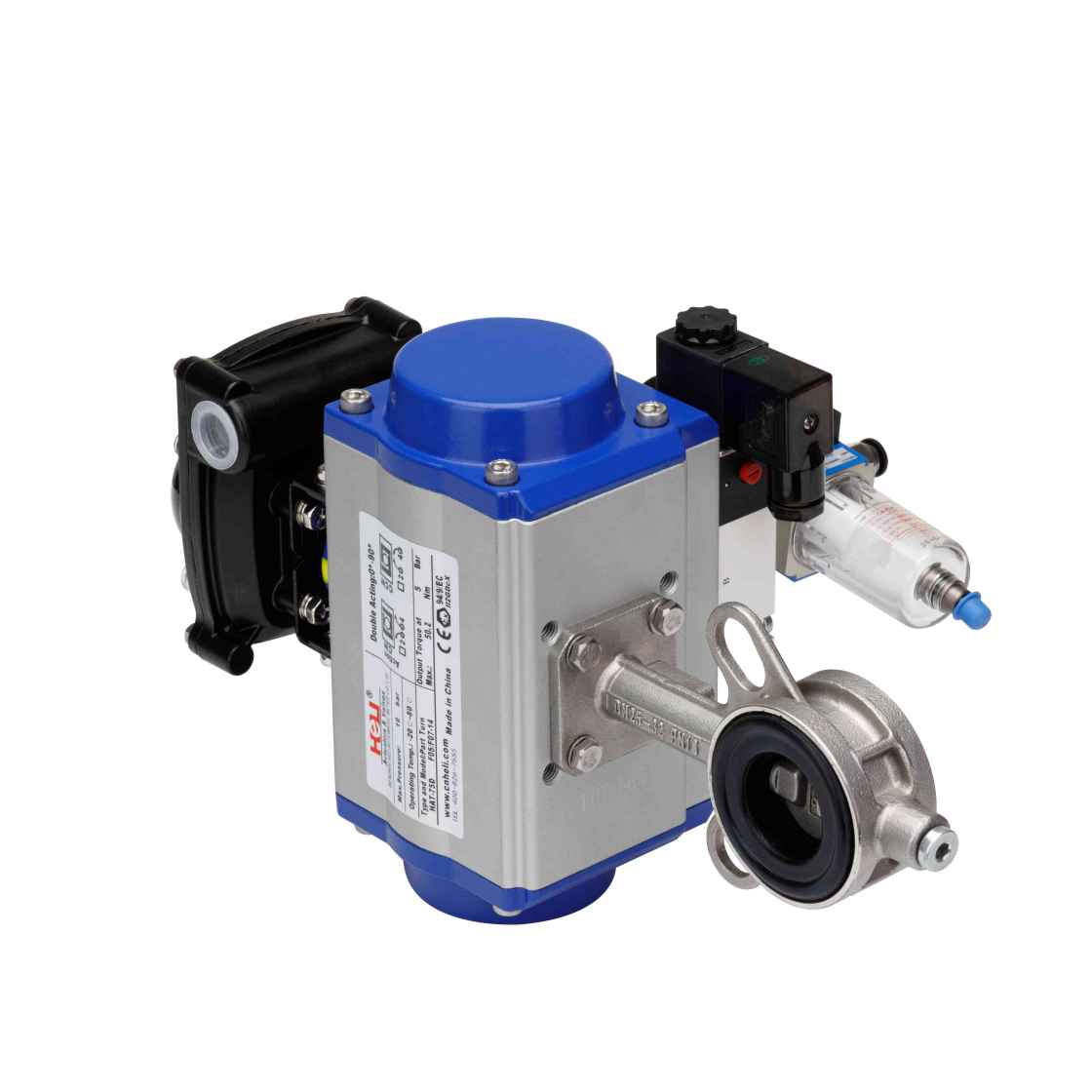

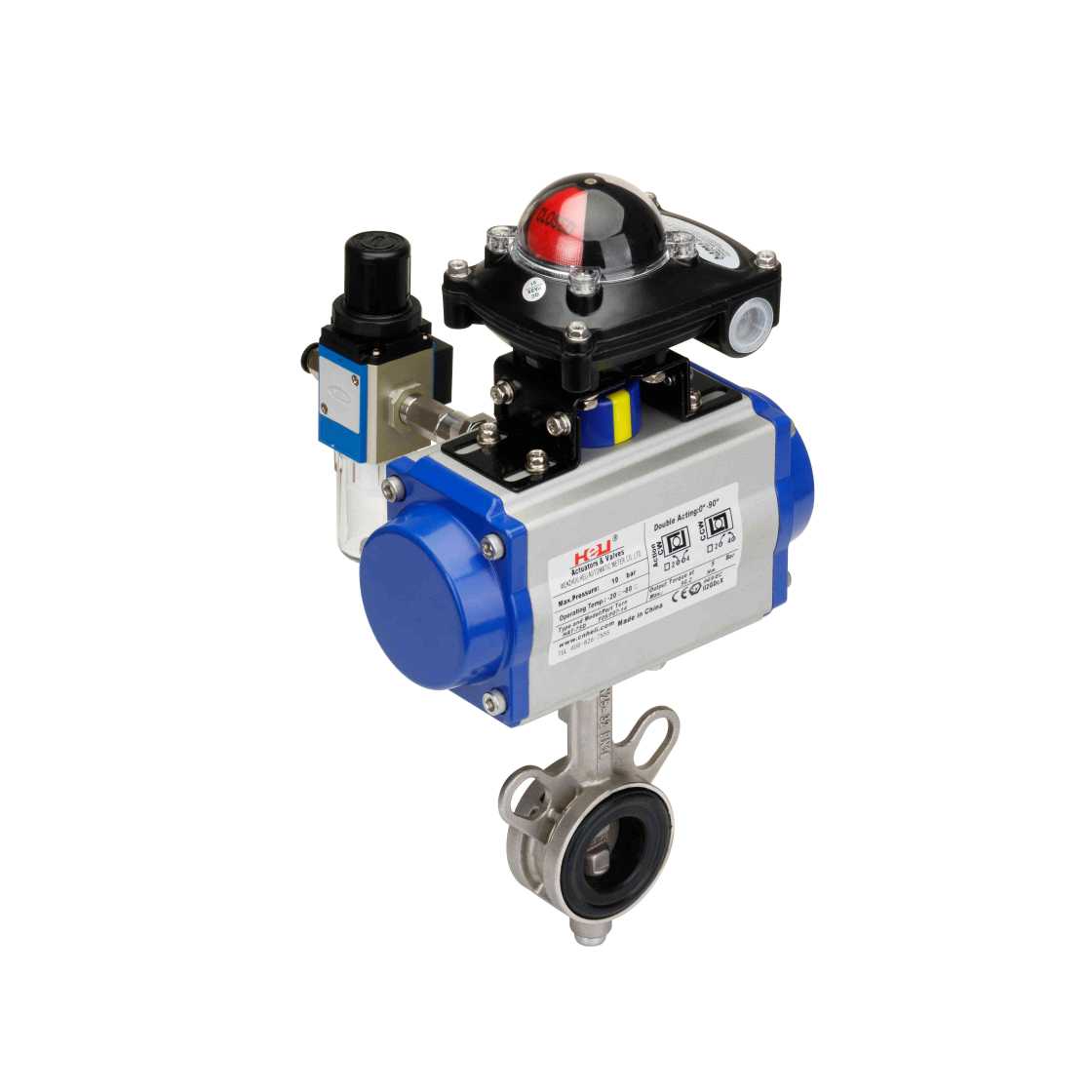

    A pneumatic butterfly valve is a type of flow control valve that utilizes compressed air to operate the valve’s actuator. The valve consists of a circular disc, often referred to as the "butterfly," which rotates around an axis to control the flow of fluids. The actuator, powered by compressed air, is responsible for turning the disc to either open or close the valve. When the disc is fully rotated, it allows the fluid to pass through the valve, and when it is rotated in the opposite direction, the flow is blocked.
